Portable Wheel Wash Systems
Deploy a full wheel wash in a single workday. No foundations, no civil work. Move it when the site moves. Closed-loop water recycling built in.
What It Is
A Complete Wheel Wash That Moves With Your Operation
Portable Wheel Wash Systems are self-contained, heavy-duty modules that clean wheels, tire treads and undercarriage — automatically — before vehicles leave your site. Unlike concrete installations, they require no permanent foundation and can be relocated across project phases within a single workday.
Ideal for advancing mines, construction access roads, quarries, landfills and any site in where operations shift every 6–24 months.
Why It Matters
Mud on Public Roads Means Fines, Delays and Shutdowns
Environmental regulators in require mining and construction sites to prevent sediment tracking onto public roads. Manual hosing is slow, inconsistent and wastes water. Sites that fail compliance checks face stop-work orders.
Why KKE
Built for the Harshest Environments
Hot-Dip Galvanised
Heavy-gauge steel, fully galvanised. No flimsy parts. Designed to handle continuous heavy-truck traffic for years without corrosion.
Deploy in One Day
Position, connect and commission within a single workday. No earthworks, no embedded tracks, no waiting for concrete to cure.
Water Reclamation Built-In
Every system includes a dirt trap with scraper conveyor, oil skimmer and coagulant dosing. Up to 90% water recycled per cycle.
Tire-Protect Design
No sharp edges in the wash bay. Highest splash guards in the industry at 2.3 m — keeps water inside, not on your crew.
Simple Controls
Automatic operation with basic PLC controls. Your site team runs it from day one — no specialist technicians needed.
Open Technology
No proprietary parts. Every component is globally available and serviceable by any qualified technician. Zero vendor lock-in.
How It Works
From Dirty Tires to Clean Roads in Under 60 Seconds
Vehicle Drives Onto Wash Bay
Entry ramps guide the vehicle onto the steel wash platform. Sensors detect the vehicle and trigger the wash cycle automatically.
High-Pressure Spray Jets Clean Tires
Optimally positioned jets target tire treads, sidewalls and undercarriage. Single, double or triple rotation depending on soiling severity.
Dirt Trap Captures Sediment
Wash water flows into the below-deck collection pit. Multi-chamber settling separates mud, rock and debris. Scraper conveyor removes sludge automatically.
Water Recycled, Vehicle Exits Clean
Filtered water is recirculated for the next cycle. Up to 90% water recovery. The vehicle exits onto the public road with clean tires — compliant.
Specifications
System Configurations
Configured to your fleet size, soil conditions and vehicle throughput.
Applications
Where Portable Wheel Wash Systems Operate
Open-Cast Mining
Haul roads & site exits
Construction Sites
Excavation & earthworks
Quarries
Aggregate & stone yards
Power Plants
Ash & coal handling
Landfill Sites
Waste handling exits
Food & Beverage
Biosecurity & sanitisation
Case Study

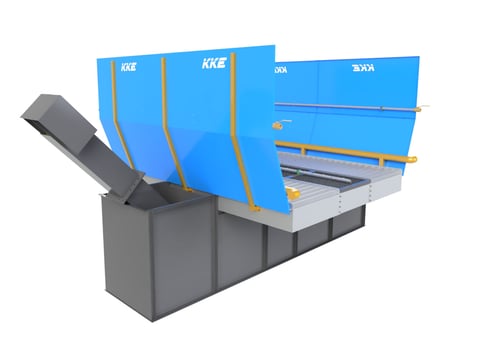

Disinfectant Wheel Wash for Poultry Vehicles
A client required a chemical-bath wheel wash for biosecurity — sanitising poultry transport vehicles at farm entry points. We engineered a custom disinfectant bath with controlled chemical dosing and closed-loop recirculation.
Non-standard requirement? We can configure a system for it.
Discuss your requirements →Get a Portable Wheel Wash Quote
Tell us your site details. We respond within 24 hours — no obligation.

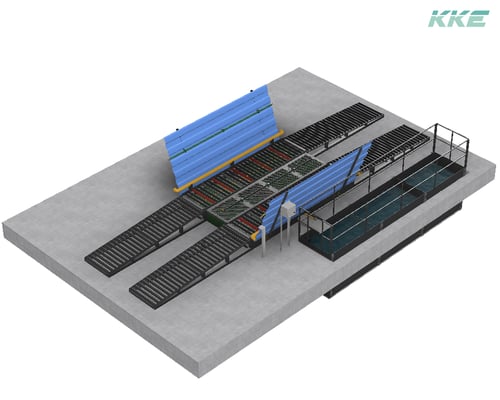

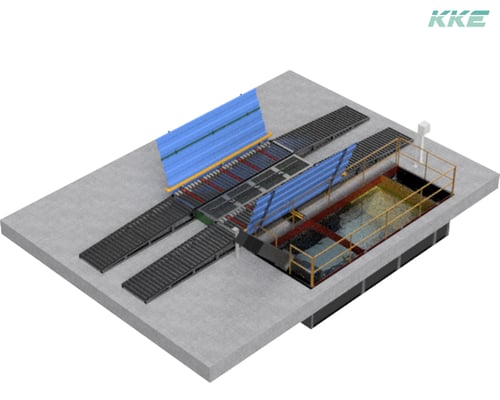

4m Wheel Wash System w Settling Tank
TW610 20.4 UG Configuration consists of a Settling tank system which is placed underground. The Wash Bay Length is 4 m which allows one tire rotation of a standard Truck. Ramps help the Trucks to Enter and Exit the Wheel Wash System easily.

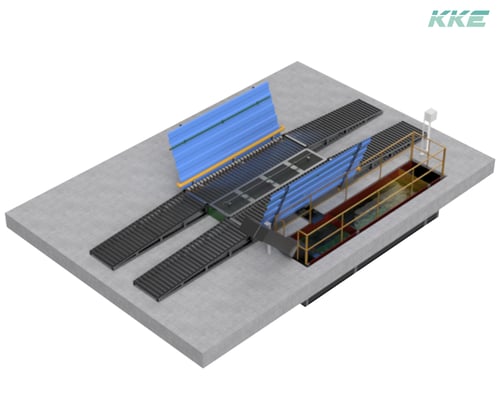

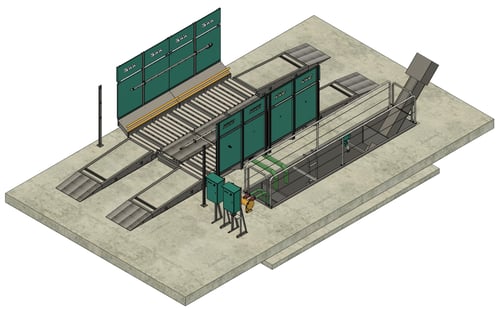

4 m Wheel Wash System with Dirt Trap System
TW610 20.4 UGC configuration consists of an Entry Exit Ramp, a Wash Bay for 1 tire rotation along with Underground Dirt Trap System.

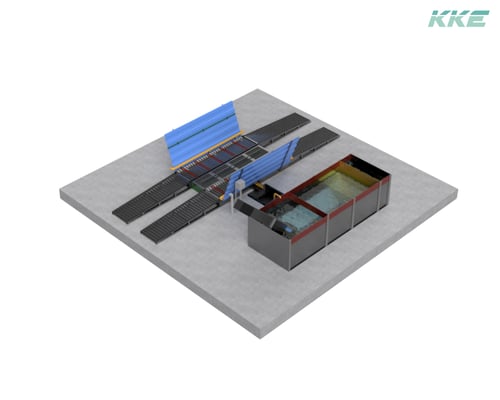

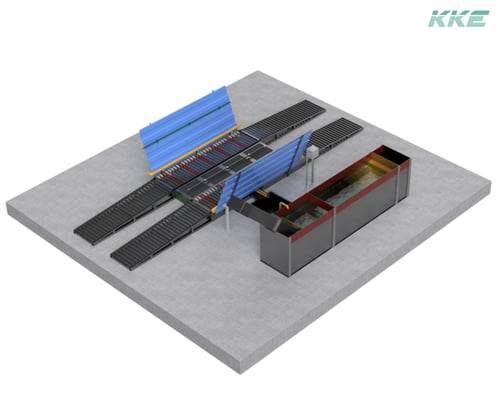

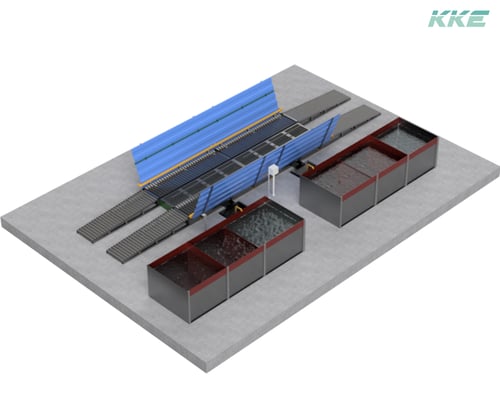

4 m Wheel Wash System with Settling Tank (Above Ground)
TW610 20.4 AG Wheel Wash System consists of 4 m wash with entry and exit ramps. The settling tank is above ground. Transfer tank with a submersible is provided to transfer water from the Drain to the Settling Tank.

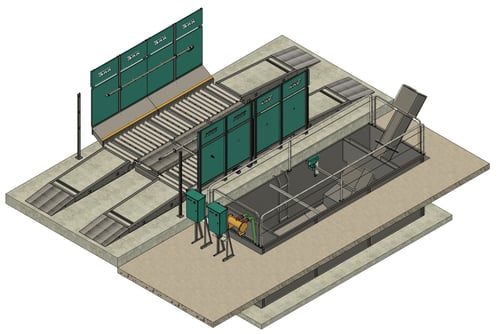

4m Wheel Wash System with PCET20SC Above Ground
TW610 20.4 AGC Wheel Wash Equipment comes with 4 m wash Bay along with PCET20SC for larger throughput of trucks. This configuration requires minimum civil construction.

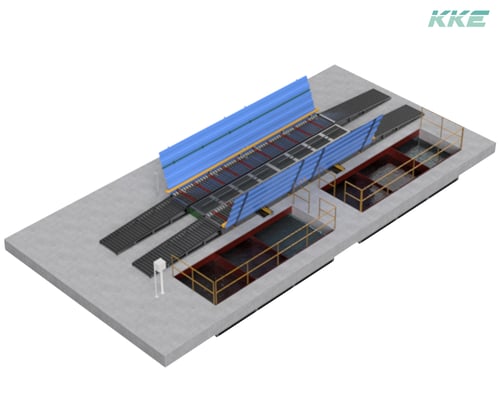

8m Wheel Wash System with Settling Tanks
TW610 40.8 UG configuration consists of 8 m wash bay with Entry and Exit Ramps. The system caters for almost 2.5 tire rotations and is suitable for sticky kind of dirt. The settling Steel water tanks are under ground and the dirt settling is by gravity.

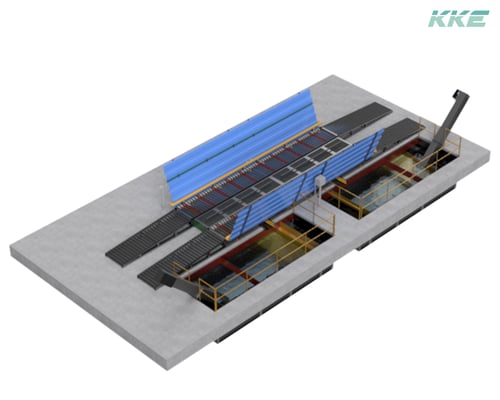

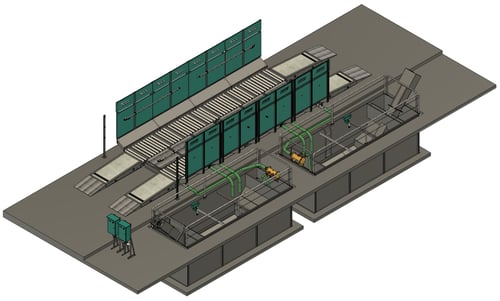

8m Wheel Wash System with Underground PCET20SC
TW610 40.8 UGC Wheel Wash System comes with 2 PCET20SC Dirt Trap systems which are placed underground. The wash bay is 8 m which is suitable for high throughput conditions. The system works automatically with zero manual intervention.

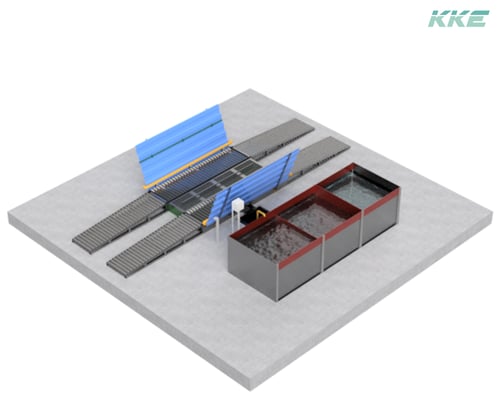

8m Wheel Wash System with Above Ground Settling Tanks
TW610 40.8 AG Tire Wash System Configuration Consists of 8 m wash Bay with Entry and Exit Ramps. The System has the settling tanks above ground and hence requires minimal civil construction or excavation.

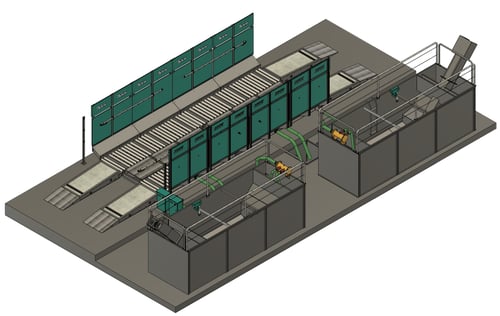

8m Wheel Wash System with Above Ground PCET20SC
TW610 40.8 AGC Tyre Wash System consists of 8 m wash bay which allows 2.5 tire rotations within the Tyre Wash System. The equipment comes with 2 PCET20SC Dirt Trap Systems which allow the sludge and oil to be removed.
4m Wheel Wash System with Settling Tank
TW610 8.4 UG Tyre Wash System Configuration has 4 m ideal for single tyre rotation along with underground settling tank of 8kl. Suitable for a traffic upto 10 trucks per hour.
4m Wheel Wash System with PCET8SC Underground
TW610 8.4 UGC Tyre Wash System Configuration has 4 m wash bay suitable for one tyre rotation within the wheel wash system. Underground PCET8SC Dirt Trap System is provided for water reclamation. Splash Guards are supplied for water conservation.
4m Wheel Wash System with Above Ground Settling Tank
TW610 8.4 AG wheel wash system has 4 m wash bay with Hot dip galvanised Entry and Exit Ramps. The system has above ground settling tank and one under ground transfer tank. This configuration requires minimal civil construction.
4m Wheel Wash System with PCET8SC Above Ground
TW610 8.4 AGC configuration is with 4 m wash bay along with Entry and Exit Galvanised Steel Ramps. The system comes with PCET8SC Dirt Trap system which is placed above ground. A transfer tank is supplied to transfer the water from the Wheel Wash System to
